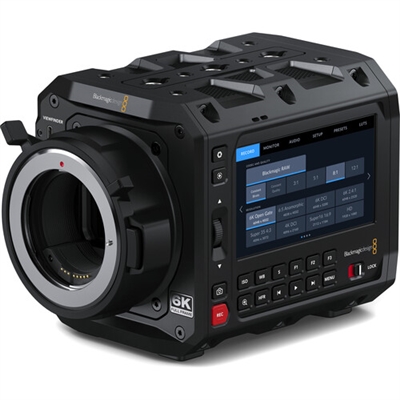

Blackmagic Design PYXIS 6K Cinema Box Camera (Canon EF)
Blackmagic Design PYXIS 6K Cinema Box Camera (Canon EF)

Alternative Views:
Our Price: $2,995.00

Quantity in Stock:1

Availability:: Ships in 1-2 days
Product Code: CINECAMCPYXD60LFEF(43970)
Qty:

Description

Key Features
  • Full-Frame 6K Sensor
  • Up to 6K36 fps Open Gate / 6K Anamorphic
  • 13-Stop Dynamic Range, Dual-Native ISO
  • Canon EF Lens Mount
  • 4" HDR LCD Touchscreen
  • Records Blackmagic RAW and H.264 Proxies
  • Built-In Streaming via Ethernet or 4G/5G
  • Switchable Side Plates, Mounting Threads
  • Two CFexpress Card Slots, USB-C Port
  • Ethernet and 12G-SDI Ports

Large-Format Digital Film Sensor
The PYXIS is equipped with a massive 24 x 36mm full-frame sensor with a native 6048 x 4032 resolution, making it 3x larger than a Super 35 sensor. This allows you to shoot with a shallow depth of field or use anamorphic lenses without cropping for a true cinematic look. A 13-stop dynamic range with dual-native ISO up to 25,600 ensures low-noise imagery in all lighting conditions. Shoot up to 36 fps at full sensor resolution or 120 fps windowed.

Flexible Film Formats
Work in a variety of film formats and aspect ratios without sacrificing quality, thanks to the large sensor. At its full area, the sensor provides you with Open Gate 3:2 images for easier framing in post-production. You can also work in true 6:5 anamorphic without needing to crop for widescreen cinematics. Use a Super 35-sized window to create a close-up version of your shot.

Multiple Resolutions and Frame Rates
Shoot in standard video resolutions and frame rates from HD to 6K or still images at 24.6 MP using the PYXIS. For higher frame rates, you can window the center and shoot up to 100 fps at 212 x 1184 Super 16. Other options include 6K Open Gate 3:2 at 36 fps, 4832 x 4032 anamorphic at 24 fps, and 1920 x 1080 at 120 fps, among other resolutions.

HDR Imagery and Dual-Native ISO
A wide 13-stop dynamic range preserves more detail in both the lightest and darkest areas of your image. Set the exposure for an indoor scene while still retaining details in the bright outdoor light coming through a window. An expanded color range and included DaVinci Resolve Studio code give you creative freedom over the look of your footage. Dual-native ISO up to 25,600 minimizes grain and noise in your images while maintaining the full dynamic range of the sensor. ISO 400 is ideal for on-set lighting configurations, while ISO 3200 is perfect for dimly lit environments. The gain is automatically set as you adjust your ISO for intuitive control.

Built-In SRT and RTMP Live Streaming
Live stream directly from the PYXIS on set to a secondary location via SRT and RTMP protocols. Compatible platforms like YouTube, Facebook, and X can support signals from the PYXIS for live event production. If you want to share internally, use an ATEM Streaming Bridge for a wireless link back to the studio.

Expansive Connectivity
  • The front of the PYXIS boasts a USB-C port for the Blackmagic URSA Cine EVF and a mini 3-pin XLR analog audio input with +48V Phantom power for microphone integration.
  • The back of the PYXIS has a headphone monitoring jack and an additional 3.5mm microphone input. Use the USB-C port at the back of the camera to connect to recording devices or mobile data. A 12G-SDI output integrates with a secondary monitor. A Reference/Timecode input port syncs your sources while an RJ45 Ethernet connection uploads footage to Blackmagic Cloud or controls the camera.
  • Power the PYXIS using the locking 2-pin DC power connector or the Sony BP-U battery plate.
  • Download the Blackmagic Camera Control app for wireless Bluetooth control from up to 30' away.
